UAN28 - UAN30 - UAN32
FERTILIZANTE LIQUIDO UAN
LADO DE PRODUCCIÓN
RENTABLE - RÁPIDO - INTELIGENTE
FERTILIZANTE LIQUIDO UAN

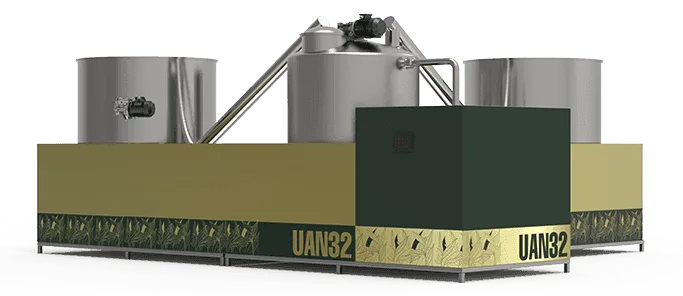

PLANTA DE PRODUCCIÓN
PROYECTO INTELIGENTE LLAVE EN MANO
FERTILIZANTE LIQUIDO UAN
Profitable Production
Mixing urea with water, causes a drop in temperature due to its endothermic reaction. Traditional systems require a hefty 75 kW of heating energy to dissolve urea, whereas our system accomplishes the same with only 15 kW. This results in a lower unit cost and increased profitability.
Fast Production
Each batch in our production takes just about 20 minutes, signifying an efficient and energy-saving process for rapid production. In contrast, conventional systems necessitate a minimum of 2 hours for heating and mixing.
Smart Production
Our automated system precisely controls and mixes urea and water without manual intervention. It continuously monitors and adjusts the percentage of each component in real-time. This dynamic process ensures no wasted batches, saving both time and energy efficiently.
Minimum Manpower
Max 2 staff member is sufficient for our production process. Their responsibilities include loading bags of raw material into the urea hopper, and then they have three hours to monitor the system via the display. After this period, the staff member conducts a quality control check, completing their duties.
Certification
ISO 9001
ISO 13485
ISO 14001
Duty Free
We supply the A.TR file. It means that you will not pay Tax on your border.
MÁS FUERZA
Ofrecemos una variedad de soluciones de alta tecnología con nuestra diversa cartera de productos.
Producción UAN TOTALMENTE AUTOMATIZADA
- Transfiere UREA y AN desde la tolva.
- Calcula la cantidad de agua que se necesita.
- Transfiere agua del sistema UPW
- Analiza la mezcla y continúa mezclando.
- Transfiere UAN a los tanques de almacenamiento.
- Sin desperdicio/pérdida en lotes de producción
- Ahorra tiempo, energía y pérdida de urea.
Equipado con sensores precisos
- No es necesario contar ni pesar los sacos de Urea y AN en nuestros Sistemas de Producción.
- Los sensores transfieren automáticamente urea y AN al mezclador según sea necesario.
Diseño UX/UI fácil de usar
Acceso e intervención en línea
Our Models
UAN 4800
CAPACITY: 1 m3/h
ELECTRIC: 380 V – 40 kW
NEEDED AREA: 350 m2
UAN 7200
CAPACITY: 2 m3/h
ELECTRIC: 380 V – 45 kW
NEEDED AREA: 400 m2
UAN 9600
CAPACITY: 3 m3/h
ELECTRIC: 380 V – 60 kW
NEEDED AREA: 450 m2
ULTRA PURIFICACIÓN DE AGUA
BASADO EN ISO 22241
BASADO EN ISO 22241
TRIPLE PASO LADO RO
AJUSTABLE CON TODAS LAS CALIDADES DE AGUA
| Characteristics | Unit | Drinking Water (ISO: 10500) | Deionized Water (ISO 22241) |
|---|---|---|---|
| Aluminum | mg/l Max | 0.03 | 0.5 |
| Calcium | mg/l Max | 75 | 0.5 |
| Iron | mg/l Max | 0.3 | 0.5 |
| Magnesium | mg/l Max | 30 | 0.5 |
| Conductivity | μS/m | 5,000-50,000 | 5.5 |
¿Cómo afecta la UAN al crecimiento de la planta?
El fertilizante UAN (nitrato de urea y amonio) normalmente contiene dos tipos principales de nitrógeno:
1. Nitrógeno amónico: El nitrógeno amónico se encuentra en forma de iones amonio (NH4+). Está inmediatamente disponible para las plantas tras su aplicación y puede ser absorbido fácilmente por las raíces de las plantas. El nitrógeno amónico tiene carga positiva y se adhiere a las partículas del suelo, lo que reduce el riesgo de lixiviación y lo hace relativamente estable en el suelo.
2. Nitrógeno ureico: la urea es un componente fertilizante nitrogenado sólido del fertilizante UAN. Cuando se aplica al suelo, la urea sufre una reacción química llamada hidrólisis, convirtiéndola en iones de amonio y bicarbonato. Los iones de amonio formados por la hidrólisis de la urea quedan disponibles para las plantas con el tiempo.
Por lo tanto, el fertilizante UAN contiene nitrógeno amónico y nitrógeno ureico, lo que proporciona un suministro equilibrado de nitrógeno a los cultivos. El nitrógeno amónico ofrece disponibilidad inmediata, mientras que el nitrógeno ureico proporciona una liberación gradual y sostenida de nitrógeno en el tiempo, mejorando la eficiencia y utilización de los nutrientes por parte de las plantas.
COMPARACIÓN DE LOS VARIOS TIPOS DE UAN
| UAN GRADE | 28 | 30 | 32 | Unit |
|---|---|---|---|---|
| Urea | 30 | 33 | 35 | % weight |
| Ammonium Nitrate | 40 | 42 | 45 | % weight |
| Water | 30 | 25 | 20 | % weight |
| Density (20℃) | 1.28 | 1.30 | 1.32 | t/m³ |
| Salt precipitation temperature | -18 | -10 | -2 | ℃ |
CONTENIDO UAN 32
| GUARANTEED CONTENT | Mass (w/w)% |
|---|---|
| Ammonia Nitrogen (N-NH3) | 8 |
| Nitrate Nitrogen (N-NO3) | 8 |
| Urea Nitrogen (N-NH2) | 16 |
| Trace Elements | – |
| Water-soluble BORON (B) | 0.01 |
| Water-soluble COPPER (Cu) | 0.02 |
| Water-soluble IRON (Fe) | 0.02 |
| Water-soluble MANGANE (Mn) | 0.01 |
| Water soluble MOLYBDENE (Mo) | 0.001 |
| Water soluble ZINC (Zn) | 0.002 |
TABLA DE APLICACIONES UAN 32
| HERB | APPLICATION TIME | FROM LEAF cc/decare (with 100 liters of water) | WITHOUT DRIP IRRIGATION liter/decare (with 1 ton of water) |
|---|---|---|---|
| Tomato-Pepper Eggplant-Cucumber | From the seedling planting to the growing period | 250-300 | 3-4 |
| Watermelon-Melon-Pumpkin | From the seedling planting to the growing period | 250-300 | 3-4 |
| Strawberry | During the development period | 250-300 | 3-4 |
| Vineyard-Kiwi | 1st application: Before flowering 2nd application: After fruit set 3rd application: 10-15 days after the second application | 250-300 | 3-4 |
| Banana | During the development period | 250-300 | 3-4 |
| Citrus | 1st application: Before flowering 2nd application: After fruit set 3rd and 4th applications: Until fruit ripens | 250-300 | 3-4 |
| Cherry-Cherry-Peach Apricot-Plum | In early development | 250-300 | 3-4 |
| Apple-Pear-Quince | In early development | 250-300 | 3-4 |
| Olive | In early development | 250-300 | 3-4 |
| Corn-Sunflower | From the period when the plant height is 15-20 cm | 300-350 | 3-4 |
| Potato-S. Beet Carrot | From the exit | 250-300 | 3-4 |
| Wheat-Barley-Paddy | From the beginning of brotherhood | 350-400 | – |
| Cotton | From the period when the plant height is 15-20 cm | 300-350 | 3-4 |
| Beans-Chickpeas Lentils | From the period when the plant height is 15-20 cm | 300-350 | 3-4 |
| Hazelnut-Walnut-Pistachio | In early development | 250-300 | 3-4 |
| Vegetables that are eaten with leaves (Lettuce, Curly, Cabbage, etc.) | During the development period | 250-300 | 3-4 |
| Onion-Garlic | During the development period | 250-300 | 3-4 |
| Green areas- Ornamental Plants | During the development period | 300-400 | 3-4 |
| Foliar application doses are applied at intervals of 10-15 days, and drip irrigation doses are applied weekly. |
Reach out to us and join the movement toward a greener and more prosperous tomorrow. Let’s work together to create smart facilities that leave a positive legacy for future generations. Together, we can turn dreams into reality and make a profound difference.
